Steel Structure Warehouse Workshop Design For Durable Buildings

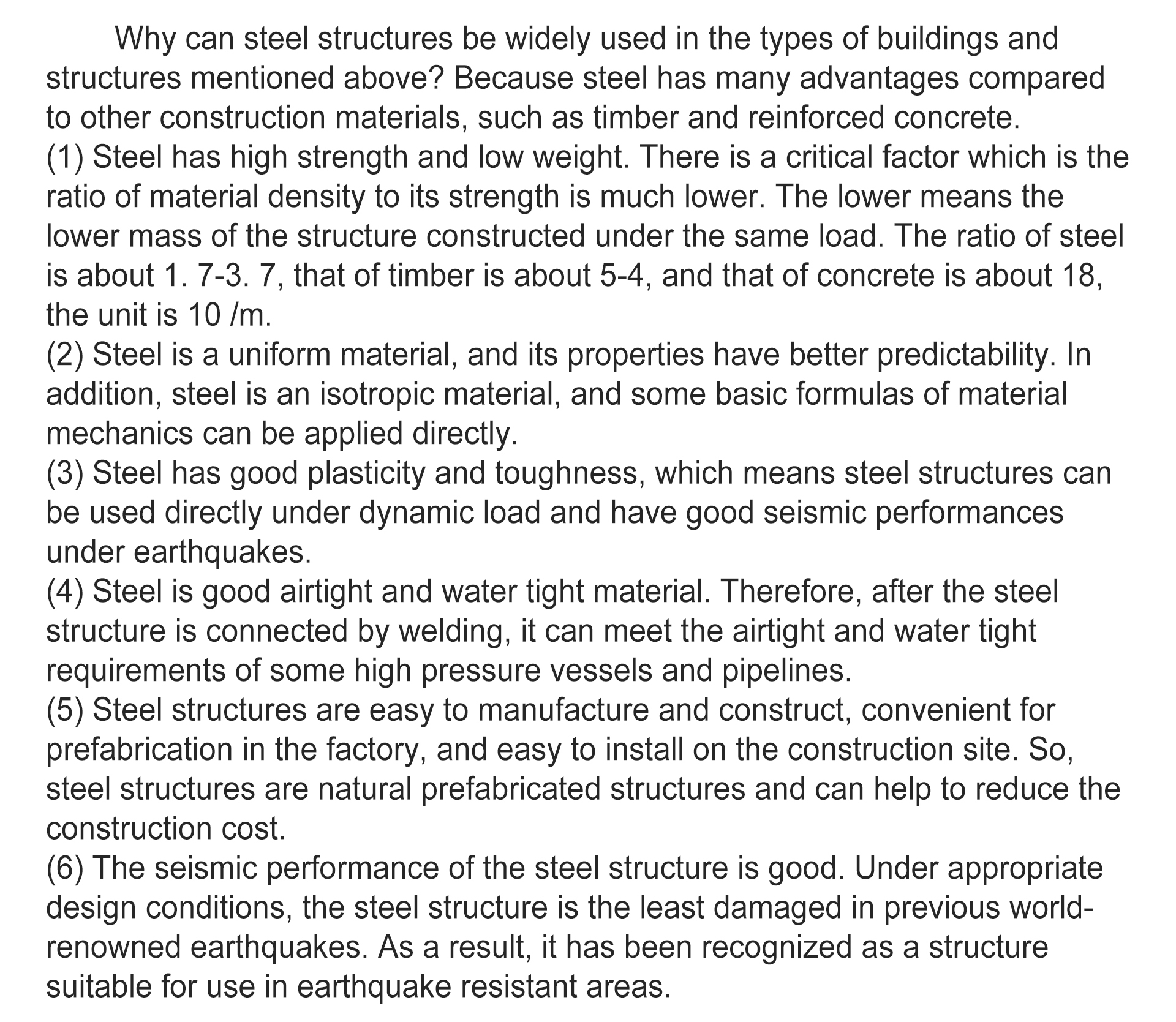

Compared with the traditional concrete structure building system, the light steel structure projects have a series of advantages, such as large span, low demands of base structure, strong seismic and wind resistance, beautiful appearance, shorter construction cycle, strong corrosion resistance, non-polluted, low maintenance costs and so on. Therefore it is more and more popular with the customers. It is mainly used for large-span structures, workshops, warehouses, office buildings, large supermarkets, logistics warehouses, showrooms, hangar, etc.
About the installation of steel structure warehouse:
Plan A: We have the detailed installation drawings and simple video that can guide you to install the buildings.
Plan B: We can send one engineer to guide you to install the buildings.
Plan C: we also can send engineer & construction team to you project site and install the buildings.
Surface treatment Hot Dip Galvanized or Alkyd painting
Installation supervisor guiding is available
Certificate ISO9001:2008
Usage life: 50 years
Basic Design Requirements: design Load: (very important)
1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (side wall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:
Building Purpose: we will recommend the best design for the purpose of the building
A. Warehouse/Storage
B. Factory
C. Agriculture Barn
D. Retail Store
E. Repair/Mechanic Shop
F. Office Space
G. Medical Warehouse
H. Animal Farm (please confirm what kind of animal)
| column and beam: | material q355 H section steel ( painted or galvanized) |
| wall&roof purlin: | c or z section steel, size from c120~C320, z100~Z200 |
| wall&roof panel : | colorful corrugated steel sheet ,sandwich panels with eps, rockwool, fiber glass, pu etc. |
| supporting: | steel angle, steel pipe, steel round. |
| gutter: | steel sheet or galvanized steel sheet |
| rainspout: | pvc pipe |
| door: | sliding sandwich panel door or rolling metal door |
| window: | pvc or aluminum alloy windows |
| accessory: | anchor bolt,high strengthen bolt, normal Bolt, skylight Belts, ventilators, etc. |
| Steel structure building |
| 1. Primary Framing | Box beam column, cross steel column, H-shaped steel column, steel beam |
| 2. Secondary Framing | Galvanized Z and C sections purlin |
| 3. Roof and Wall panels | Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU). |
| 4. Steel Decking Floor | Galvanized steel decking board |
| 5.Structural subsystem | Divider, gutter, awning, partition wall |
| 6.Mezzanines, Platforms | Painted or galvanized H beam |
| 7.Other Building Accessories | Sliding doors, roll up doors, aluminium windows, louvers, etc. |
| Service Life | 50-70years | support | steel angle, steel pipe, steel round |
| Place of Origin | Qingdao,Shandong,China | Application | workshop, warehouse, poultry house,garage etc |
| Grade | Q235B, Q355B or as per customer's need | Bolt Grade | M20, M16, M14 etc |
| Connection | intensive bolt, ordinary bolt | Window | PVC steel or aluminum alloy |
| Downspout | PVC pipe or as per customer's request | Door | sliding or rolling door |
| Purlin | C/Z shape profile | Panel | EPS/PU/fiber glass/rock wool |
| Main Frame | Welded or hot rolled H-shaped steel, columns, beams, box beams and columns |
| Drawings & Quotation: |
| (1) Customized design is welcomed. |
| (2) In order to promise an accurate quotation and drawings, please let us know the length, width, eave height and local weather.We will quote for you promptly. |
